How to Choose Materials for Large-Format Wall Art

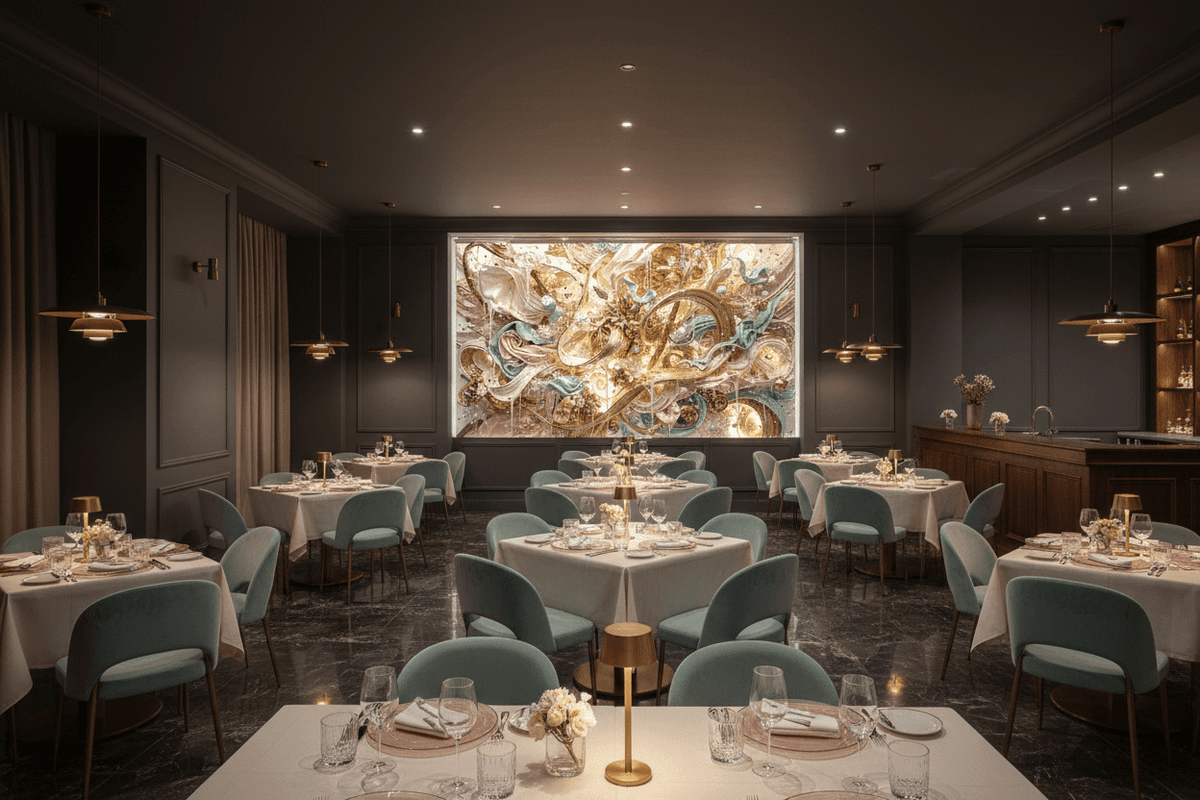

Artwork shown: Gilded Reverie

By UltraHighRes.Art · 14 min read

A 300 MP TIFF can be an excellent image master. It does not, by itself, specify a finished wall artwork. Canvas, acrylic, metal, glass, tension fabric and acoustic panels become materially different objects through a defined substrate, image process, finish, backing, frame, mounting method and display environment.

For project teams, the useful question is not “Which material is best?” It is: what exact physical system will be made from this file, and what evidence supports its use in this room? This guide explains the differences that should be visible in a specialist’s proposal before production begins.

The masterfile carries the image. The material system decides how that image is seen, mounted, maintained and lived with.

UltraHighRes.Art supplies a licensed digital masterfile only. The independent print specialist, fabricator and installer select and document the physical system, final format, colour workflow, proofing, mounting and any performance claims.

THE DECISION BEFORE THE MATERIAL

Specify the finished object, not only the image

Material names are useful shorthand, but they are not technical specifications. “Acrylic print” can mean a photographic face-mount behind clear PMMA or a direct UV print on a print-receptive acrylic sheet. “Metal print” can mean dye-infused coated aluminium, direct UV printing on aluminium composite, or a paper print mounted to Dibond. “Acoustic panel” is a printed textile facing over an absorptive core and a defined wall mount—not a flat print with an acoustic label.

That distinction is practical. It changes the crop, the visible picture field, the way highlights and blacks are rendered, the surface that viewers touch or clean, the required wall hardware, and the risks that must be approved in advance. The source file is still the visual reserve. The final object is a production decision.

Eligible UltraHighRes.Art works are supplied as 300 MP TIFF masterfiles, approximately 2.4 GB and 23,040 × 13,054 pixels. The product-level Print Size Guide establishes a first range; the specialist must then assess the actual pixel dimensions after crop, the viewing distance, the selected process and the production template. For the file-to-output sequence, read How Big Can You Print a 300 MP Image?.

Six materials, six different production questions

1. Canvas: a woven, inkjet-coated textile

Canvas should be specified as an inkjet-coated woven textile, not as a generic “canvas finish.” Professional products differ in fibre balance, weight, thickness, weave, whiteness, coating and finish. For example, Epson’s Exhibition Canvas Matte is specified at 395 gsm and 23 mil, while Hahnemühle Daguerre is a 400 gsm poly-cotton canvas. Those figures identify individual products; they are not a universal canvas standard. Epson and Hahnemühle both publish the relevant substrate data.

The weave is part of the rendering. A fine, uniform weave can keep a photographic image comparatively continuous; a more pronounced weave makes the physical textile visible and can create a deliberately painterly read. Matte, low-reflection surfaces are common in professional canvas, but the actual sheen, inkset and ICC profile should be named. A canvas does not become print-ready merely because it is called “fine art.” The qualified workflow is the chosen canvas, printer, ink, RIP/media preset and profile.

Choose canvas when the room benefits from a tactile, low-glare surface and the visible textile character is part of the intention. Watch for gallery-wrap image loss, stretcher-bar depth, corner construction, coating or varnish, and proofing after stretching. Acid-free media or an ISO claim describes a substrate; it does not by itself establish the display life of the finished print under a particular light and handling condition.

2. Acrylic: face-mount and direct UV print are different objects

“Acrylic” needs one early clarification: photographic face-mount or direct print? In a face-mount, a photographic print is reverse-mounted behind a clear acrylic sheet and normally paired with a rigid backing such as Dibond. In a direct UV print, UV-curable ink is printed onto a print-receptive acrylic sheet. The image layer, adhesive or ink system, backing, thickness, edge appearance and maintenance regime are different. A proposal should name the route rather than collapsing both into “acrylic.”

Clear acrylic can give an image a vivid, depth-enhancing presentation, but optical behaviour is grade and construction dependent. One clear continuous-cast Plaskolite sheet is specified at 92% total light transmission and less than 1% haze; a matte or anti-glare build changes the viewing result and may be more suitable opposite windows or under directional lighting. Plaskolite’s fabrication guide and WhiteWall’s matte acrylic specification illustrate why “acrylic” alone is insufficient.

Choose acrylic when the project wants a crisp contemporary panel and is prepared to approve the exact optical stack under real light. Watch for reflection, surface-care sensitivity, thermal movement and panel engineering. Acrylic is lighter than glass but less stiff and more responsive to temperature change; at large scale, thickness, backer or subframe, hanging hardware and expansion allowance must be designed as one system. Uncoated acrylic also needs material-specific cleaning: soft cloth, mild soap and water—not casual solvents or dry, abrasive wiping. See ACRYLITE’s acrylic-versus-glass comparison and care guidance.

3. Metal: distinguish dye-infused aluminium from direct UV Dibond

“Metal print” is a product family, not one uniform material. In a dye-sublimated coated-aluminium system, the image is transferred and infused into a coating on a thin aluminium sheet. In a direct UV Alu-Dibond system, UV inks are printed onto the coated aluminium face of a composite panel. A third option sometimes sold under the same label is a paper or fine-art print mounted to Dibond. These are materially different constructions with different edges, thicknesses, finishes, mounting routes and visual behaviour.

Surface selection is part of the image decision. White-base coated aluminium aims for a more conventional colour presentation. Clear or brushed-metal bases allow the material to alter lighter portions of the image. Gloss can intensify colour and apparent detail; semi-gloss or matte can control reflections. None is inherently superior. Pale passages, neutral greys and high-light areas should be checked on the final system, not judged from a small digital simulation.

Choose metal when a rigid, contemporary panel and a clearly specified edge or float-mount are part of the architecture. Watch for the chosen process, surface base, sheen, panel thickness, wall hardware and environmental qualification. A specialist may list different maximum sizes for different systems, and an indoor cleanability claim should never be assumed to cover exterior or high-sunlight use. ChromaLuxe, WhiteWall’s direct Dibond guide and Bay Photo show the process differences.

4. Glass: a reflective, safety-critical panel

Glass is not simply a harder version of acrylic. A credible interior-art brief may specify low-iron, fully tempered safety glass with a reverse UV print, a defined white layer, backing and engineered mounting. Low-iron glass can reduce the colour cast of ordinary glass; AGC lists 92% transmission for its Planibel Extra Clear range. That is useful material context, not a guarantee that every printed glass object will render colour identically. AGC’s product data should be read alongside a physical proof.

The smooth glass face makes ambient reflection part of the image. Windows, luminaires, viewing angle and dark image areas all matter. Architectural glass guidance identifies reflectivity as visible light bouncing from the surface and recommends inspecting samples under changing viewing and lighting conditions. The specialist must also distinguish print routes. UV flatbed printing is a cured ink layer on glass and relies on the chosen preparation, primer or adhesion promoter, ink, cure and protective coating. Digital ceramic printing, in contrast, is a separate architectural route in which ceramic frit is fused during tempering; its durability claims do not describe an ordinary UV print.

Choose glass when a smooth, architectural and precisely engineered panel is worth the added weight, reflection and handling discipline. Watch for panel mass, crate and site access, final holes or cut-outs, edge finishing, layer order, white-ink opacity and replacement exposure. Tempered glass is stronger and breaks into small particles when it fails, but it remains breakable; cutting, drilling and edge finishing must be resolved before tempering. AGC’s tempered-glass note and Direct Color Systems’ UV-glass guide are useful technical references.

5. Tension fabric: a textile-and-frame system

Tension-fabric art should be scoped as a textile graphic engineered to remain taut in a particular frame. For a frameless-looking wall installation, the common construction is SEG—silicone-edge graphic: a printed textile has a silicone edge sewn around its perimeter and that edge is pushed into a recessed aluminium-frame groove. The finished fabric size cannot be calculated from the artwork alone. It depends on the frame profile, visible opening, groove, sewing method, silicone edge, stretch behaviour and fabrication tolerance.

Polyester is common for dye-sublimated SEG because the process is suited to polyester textile, but a material brief should still name the exact fabric: fibre composition, knit or weave, weight, stretch by direction, opacity, hand and whether it is intended for non-lit, blockout or backlit use. These choices affect the apparent detail, colour and fit. Seamless width is supplier and workflow dependent; a wider wall may require a seam or a modular frame, and seam placement should be decided before the artwork is cropped.

Choose tension fabric when the project needs a lightweight, low-glare, potentially changeable large wall field. Watch for the exact frame and fabric, any seam plan, colour-management limits and fire documentation for the actual printed and finished fabric. Raster preflight requirements also vary: one SEG system specifies 72 dpi at full scale while another fabric supplier recommends 150 dpi at scale. The answer is not a generic DPI rule; it is a preflight of the 300 MP TIFF at the finished scale and a physical strike-off. See American Image Displays’ SEG guide, SEG Systems’ artwork guidance and Liba Fabrics’ digital-printing notes.

6. Acoustic panels: a printed facing over an absorptive composite

Printed acoustic wall art is a finished composite system, not a flat print with an acoustic label. It typically combines an absorptive core—such as rigid fibreglass, recycled PET or recycled cotton—with a printed, acoustically transparent textile facing and a defined wall mount. The selected textile, ink coverage, core, thickness, edge treatment, air gap and mounting must work together for the proposed visual and acoustic result.

The printed textile is normally intended to let sound reach the absorptive substrate; it is not the element doing most of the absorption. Noise Reduction Coefficient (NRC) is an in-room absorption metric measured under a defined test method. It is not a measure of image quality, a promise of low-frequency control or evidence that a room is “soundproof.” The exact proposed assembly must be specified and, where performance is important, supported by the relevant test documentation. Carnegie explains why the facing and the panel must be assessed together; Commercial Acoustics explains the scope of NRC.

Choose acoustic panels when the visual project also needs a considered approach to reverberation within the room. Watch for the complete tested assembly—not just a core value or stock fabric certificate—plus panel depth, image breaks, fire documentation, wall mounting and serviceability. A bespoke printed build should not inherit a standard panel’s fire or acoustic claim without evidence for the selected core, textile, print process and mounting. The Ashen Surge installation story shows how one masterfile can be translated across three panels; the acoustic-panel sourcing guide covers the project handover.

THE SHORTLIST

A practical comparison before you request a quote

What a useful specialist proposal should answer

1. File and crop. Confirm the actual pixel dimensions, RGB profile, final image size, crop, bleed, safe area, effective PPI, viewing-distance assumption, RIP interpolation and output sharpening.
2. Exact build. Name every component: substrate or textile SKU, printer and ink, coating or finish, adhesive, backer, core, frame or subframe, edge treatment and mounting hardware.
3. Proof. Supply a contract proof, material strike-off or calibrated detail proof on the same intended production system; assess it in representative light.
4. Installation. State finished weight, wall requirements, hardware, expansion strategy where relevant, transport, crate, site access and replacement plan.
5. Evidence. Any claim about fade resistance, water resistance, fire classification, outdoor use or acoustic performance should identify the exact configuration, test basis, display assumptions and exclusions.

A material is not a finish applied to a file. It is part of how a work occupies its final architecture.

FINAL QUESTIONS

Frequently Asked Questions
